After you’ve [installed Telegraf Controller](/telegraf/controller/install/) and
set up your owner account, you’re ready to start managing Telegraf configurations
and agents.
This guide walks you through the core workflow: creating a configuration,
starting a Telegraf agent using the configuration, and verifying that the agent
reports back to Telegraf Controller.

1. [Create an API token](#create-an-api-token)
2. [Create a Telegraf configuration](#create-a-telegraf-configuration)
3. [Start a Telegraf agent](#start-a-telegraf-agent)
4. [View the reporting agent](#view-the-reporting-agent)
5. [Update the configuration](#update-the-configuration)
6. [Verify the configuration update](#verify-the-configuration-update)

## Create an API token

API tokens authenticate Telegraf agents when they retrieve configurations and
send heartbeats to Telegraf Controller.

1. Navigate to the **API Tokens** page.

2. Click **+ Create API Token**.

3. Enter a description–for example, `Getting started agent token`.

4. Select a token **Expiration**.

5. Select the permissions to assign to the token. For convenience, you can
   select one of the available **Permission Presets**.

   > [!Tip]
> The **Telegraf Agent** preset includes all permissions a Telegraf agent
> needs to interact with Telegraf Controller.

   Telegraf agents need the following permissions to interact with
   Telegraf Controller:

   * **Configurations**: Read
   * **Heartbeat**: Write

6. Click **Create Token**.

#### Copy and store your token

Copy your API token immediately after creation.
The full token value is only displayed once and cannot be retrieved later.

*For more information about token permissions, see [Manage API tokens](/telegraf/controller/tokens/).*

## Create a Telegraf configuration

Configurations define what data Telegraf collects, how it processes the data,
and where it sends it.
For this guide, you’ll create a simple configuration that prints a message to
stdout and reports agent health back to Telegraf Controller.

1. In the Telegraf Controller user interface (UI), select **Configurations**in the navigation bar.

2. Click  **Add Config**.

3. Enter a name and description for the configuration–for example,
   “Getting Started.”

4. In the **Code Editor**, enter the following TOML:

   #### Linux/macOS ####

   ```
   [[inputs.exec]]
     commands = [
       ["echo", "Started with a config from Telegraf Controller"]
     ]
     data_format = "value"
     data_type = "string"

   [[outputs.file]]
     files = ["stdout"]
     data_format = "template"
     template = "{{ .Time.Format \"15:04:05\" }}: {{ .Field \"value\" }}\n"

   [[outputs.heartbeat]]
     url = "http://localhost:8000/agents/heartbeat"
     instance_id = "&{agent_id}"
     interval = "1m"
     include = ["hostname", "statistics", "configs", "status"]
     # Include to authorize with Telegraf Controller
     # Note: If using Telegraf 1.38.x or earlier, use INFLUX_TOKEN
     token = "${TELEGRAF_CONTROLLER_TOKEN}"

     [outputs.heartbeat.status]
       default = "ok"
   ```

   ```
   [[inputs.exec]]
     commands = [
       ["cmd", "/C", "echo Started with a config from Telegraf Controller"]
     ]
     data_format = "value"
     data_type = "string"

   [[outputs.file]]
     files = ["stdout"]
     data_format = "template"
     template = "{{ .Time.Format \"15:04:05\" }}: {{ .Field \"value\" }}\n"

   [[outputs.heartbeat]]
     url = "http://localhost:8000/agents/heartbeat"
     instance_id = "&{agent_id}"
     interval = "1m"
     include = ["hostname", "statistics", "configs", "status"]
     # Include to authorize with Telegraf Controller
     # Note: If using Telegraf 1.38.x or earlier, use INFLUX_TOKEN
     token = "${TELEGRAF_CONTROLLER_TOKEN}"

     [outputs.heartbeat.status]
       default = "ok"
   ```

   This configuration does the following:

   * Uses the `exec` input plugin to execute an `echo` command to output a message.
   * Uses the `file` output plugin to output the message to `stdout`, formatted
     using a template that includes a timestamp and the message.
   * Uses the heartbeat plugin to periodically send agent status information
     back to Telegraf Controller, which lets you monitor agent health, track
     which configurations are loaded, and detect when agents stop reporting.
   * Uses the `TELEGRAF_CONTROLLER_TOKEN` (Telegraf 1.39+) or the `INFLUX_TOKEN`(Telegraf 1.38.x or earlier) environment variable to authorize with
     Telegraf Controller.
   * Uses the `agent_id` [parameter](/telegraf/controller/configs/dynamic-values/#parameters)to set the `instance_id` which uniquely identifies the Telegraf agent.

   > [!Important]
> #### Heartbeat URL and port ####
> The example above uses `http://localhost` and the default heartbeat port,`8000`. Your Telegraf Controller instance provides a default heartbeat
> configuration with the heartbeat URL and port for your instance.

   The example above uses `http://localhost` and the default heartbeat port,`8000`. Your Telegraf Controller instance provides a default heartbeat
   configuration with the heartbeat URL and port for your instance.

5. Click **Create Configuration**.

## Start a Telegraf agent

With a configuration and token ready, start a Telegraf agent that pulls its
configuration from Telegraf Controller and reports back via the heartbeat plugin.

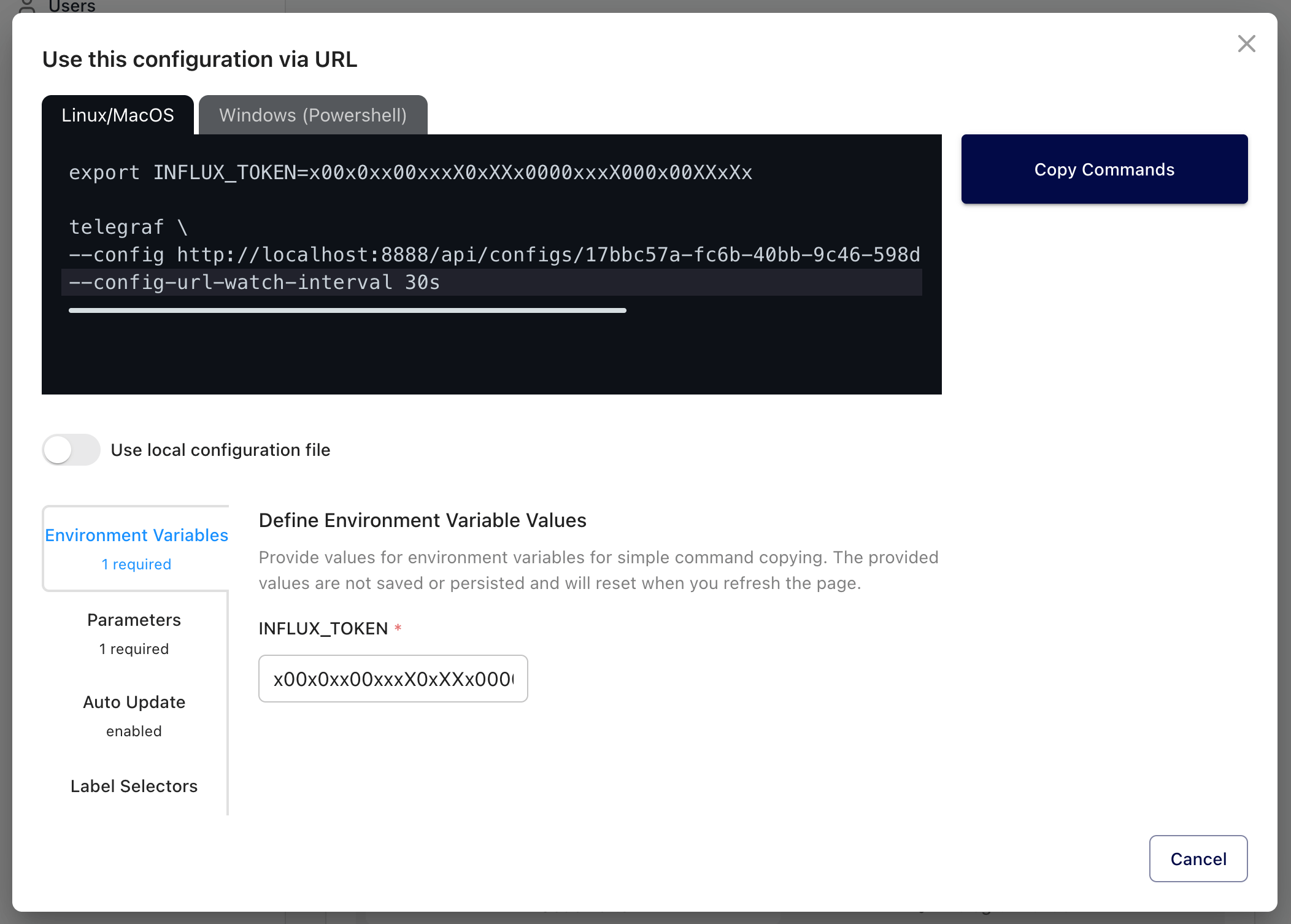

### Use the command builder

Telegraf Controller can build the `telegraf` command for you:

1. In Telegraf Controller, select **Configurations** in the navigation bar.

2. Click the name of the configuration you created.

3. Click **Use this Configuration**.

4. In the command builder modal:

   1. In the **Environment Variables** section, define the **INFLUX\_TOKEN**environment variable using the raw token string of the API token you
      created. This authorizes the Telegraf agent to interact with
      Telegraf Controller.
   2. In the **Parameters** section, define the **agent\_id** parameter with
      a unique agent identifier.
   3. In the **Auto Update** section, enable auto-update and set the interval
      to `30s`. This instructs Telegraf to check for configuration updates
      every 30 seconds.

   <img width="1052" src="/img/telegraf/controller-gs-command-builder.png" alt="Telegraf Controller Command Builder">
5. Click **Copy Commands** to copy the generated command to your clipboard.

6. Paste and run the command in your terminal.

### Run manually

Alternatively, start the agent manually by running the following commands in
your terminal.
Replace the placeholder values with your actual Telegraf Controller URL and
port, configuration ID, API token, and agent ID:

#### Linux/macOS ####

```bash
# Note: If using Telegraf 1.38.x or earlier, use INFLUX_TOKEN environment variable
export TELEGRAF_CONTROLLER_TOKEN=YOUR_TC_API_TOKEN

telegraf \
  --config "http://localhost:8888/api/configs/YOUR_CONFIG_ID/toml?agent_id=AGENT_ID" \
  --config-url-watch-interval 30s
```

```powershell
# Note: If using Telegraf 1.38.x or earlier, use INFLUX_TOKEN environment variable
$env:TELEGRAF_CONTROLLER_TOKEN="YOUR_TC_API_TOKEN"

telegraf.exe `
  --config "http://localhost:8888/api/configs/YOUR_CONFIG_ID/toml?agent_id=AGENT_ID" `
  --config-url-watch-interval 30s
```

Replace the following:

* `YOUR_TC_API_TOKEN`:
  API token you created in the [previous step](#create-an-api-token)
* `YOUR_CONFIG_ID`:
  Configuration ID from your configuration’s detail page in Telegraf Controller
* `AGENT_ID`:
  A unique ID for your Telegraf agent

The `TELEGRAF_CONTROLLER_TOKEN` (Telegraf 1.39+) or the `INFLUX_TOKEN`(Telegraf 1.38.x or earlier) environment variables authorize the agent to
retrieve the configuration and send heartbeats to Telegraf Controller.

The `--config-url-watch-interval` flag tells Telegraf to check for configuration
updates at the specified interval.
In this example, the agent checks every 30 seconds and automatically reloads the
configuration if it has changed.

After starting, Telegraf retrieves the configuration from Telegraf Controller
and begins collecting metrics.
You should see the timestamp and message printed to stdout.

## View the reporting agent

Once the agent sends its first heartbeat (within about one minute), it appears
in Telegraf Controller.

1. In Telegraf Controller, select **Agents** in the navigation bar.
2. Confirm your agent appears in the list with an **Ok** status.
3. Click the **More button (⋮)** and select**View Details** to see agent metadata, the loaded configuration, and
   reporting history.

## Update the configuration

To see how configuration changes propagate to running agents, update the
message generated by the `exec` input plugin.

1. In Telegraf Controller, select **Configurations** in the navigation bar.

2. Click the name of the configuration you created.

3. Update the `echo` command to print a different message:

   #### Linux/macOS ####

   ```
   [[inputs.exec]]
     commands = [
       ["echo", "Started with AN UPDATED config from Telegraf Controller"]
     ]
     # ...
   ```

   ```
   [[inputs.exec]]
     commands = [
       ["cmd", "/C", "echo Started with AN UPDATED config from Telegraf Controller"]
     ]
     # ...
   ```

4. Click **Save**.

## Verify the configuration update

Because you started Telegraf with `--config-url-watch-interval 30s`, the agent
checks for configuration updates every 30 seconds.
After you update the configuration in Telegraf Controller, the agent detects
the change on its next check interval and automatically reloads.

Watch the terminal where Telegraf is running.
Within 30 seconds, the message returned in the `stdout` output updates to the
new message, confirming that the agent picked up the updated configuration.

## Next steps

* [Create and manage configurations](/telegraf/controller/configs/) to define
  more advanced Telegraf pipelines.
* [Use dynamic values](/telegraf/controller/configs/dynamic-values/) to keep
  configurations portable across environments.
* [Set up reporting rules](/telegraf/controller/agents/reporting-rules/) to
  define when agents are considered not reporting.
* [Configure agent statuses](/telegraf/controller/agents/status/) to monitor
  agent health using CEL expressions.
* [Manage API tokens](/telegraf/controller/tokens/) to control access to
  Telegraf Controller APIs.
