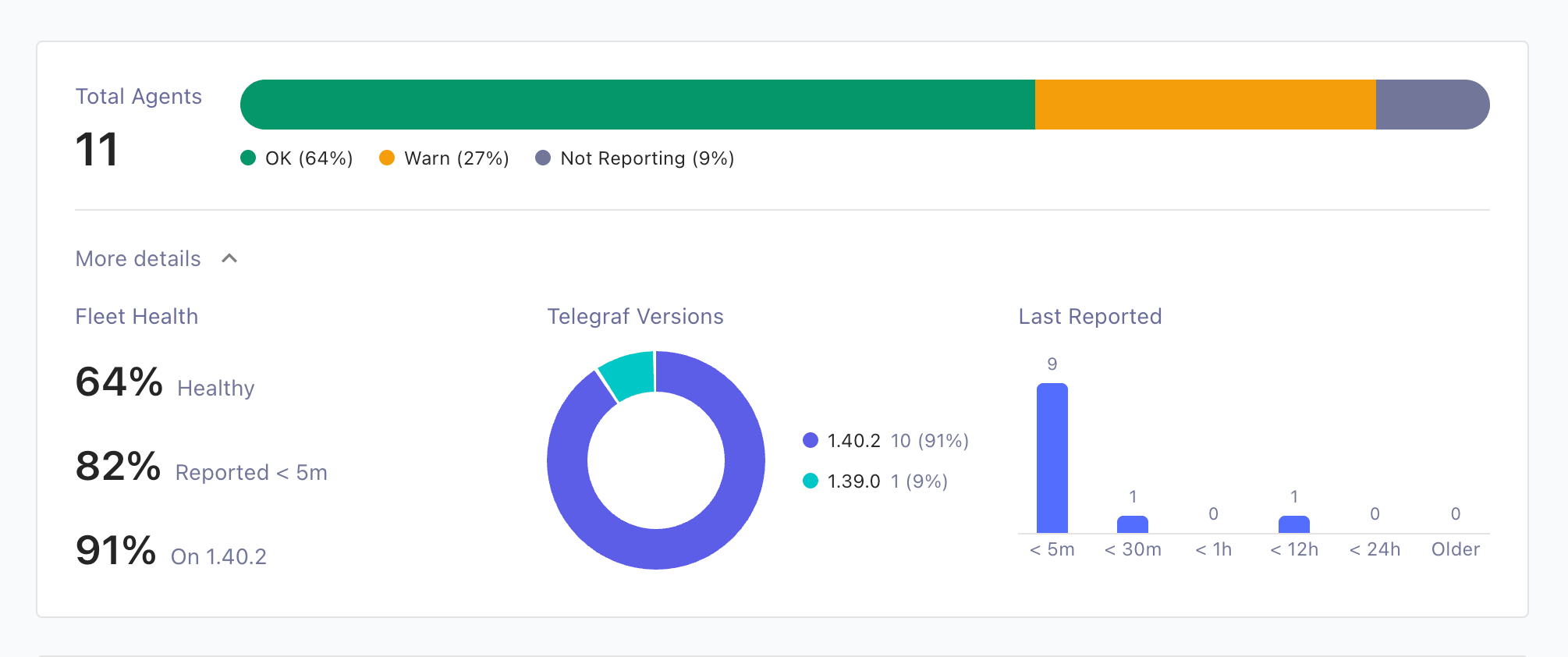

--- title: Monitor agents description: Use the Agents page summary visualizations, search, filters, and the fleet summary API to monitor the health of your Telegraf fleet. url: https://docs.influxdata.com/telegraf/controller/agents/monitor/ estimated_tokens: 2260 publisher: InfluxData canonical: https://docs.influxdata.com/telegraf/controller/agents/monitor/ date: '2026-10-26T13:24:39-06:00' lastmod: '2026-10-26T13:24:39-06:00' --- The **Agents** page summarizes the health of your Telegraf fleet at a glance and lets you search the agent list and filter it by status, configuration, and reporting rule. The same data is available from the fleet summary API for dashboards and automation. * [The Agents page at a glance](#the-agents-page-at-a-glance) * [View fleet summary details](#view-fleet-summary-details) * [Filter the agent list](#filter-the-agent-list) * [Search the agent list](#search-the-agent-list) * [Refresh the list](#refresh-the-list) * [Query the fleet summary API](#query-the-fleet-summary-api) ## The Agents page at a glance The top of the **Agents** page shows the total number of agents and a segmented status bar with the share of agents in each status: **OK**,**Warn**, **Fail**, **Undefined**, and **Not Reporting**. Statuses with no agents are hidden from the bar. For what each status means and how statuses are set, see[Set agent statuses](/telegraf/controller/agents/status/). ### Agent list columns The agent list has the following columns: * **Agent Details**: the agent’s instance ID, or its hostname when the agent did not report an instance ID. Click **Show labels** above the list to show each agent’s labels beside its ID. * **Telegraf Version**: the Telegraf version the agent reported. * **Advisories**: the agent’s security advisory exposure. Requires a Telegraf Enterprise license. See [Find affected agents on the Agents page](/telegraf/controller/security-advisories/view/#find-affected-agents-on-the-agents-page). * **Status**: the agent’s current status. * **Last Reported**: when the agent last sent a heartbeat. Switch between two row layouts with the toggle above the list: * **Compact View** () shows the version number and the status as a colored dot. * **Detailed View** () adds the agent’s IP address under its ID, shows the full version string the agent reported, and shows the status as a labeled chip. Sort the list by **Agent Details**, **Status**, or **Last Reported** by clicking a column header. Click the header again to reverse the sort order. ## View fleet summary details Expand **More details** below the status bar to show three summary visualizations: * **Fleet Health**: percentage tiles for **Healthy** agents, agents that**Reported \< 5m** ago, and agents on the newest reported Telegraf version. Tiles show `—` when no agents match the current filters. * **Telegraf Versions**: a donut chart of reported Telegraf versions. The chart shows up to six slices and folds the smallest shares into **Other**. Agents that don’t report a version appear as **Unknown**. * **Last Reported**: a histogram of when agents last reported, in the bands**\< 5m**, **\< 30m**, **\< 1h**, **\< 12h**, **\< 24h**, and **Older**. Each band counts agents whose most recent heartbeat falls in that window. The**Older** band also includes agents that have never reported. The summary reflects the current filters, so you can inspect the health of a subset of the fleet, for example, all agents using one configuration. Telegraf Controller agents page with the fleet summary expanded ## Filter the agent list Use the controls above the agent list to filter it: * **Search** (): matches the agent’s ID, hostname, IP address, or Telegraf version. Toggles inside the search box switch on regular expression and case-sensitive matching. See [Search the agent list](#search-the-agent-list). * **Status**: show only agents in the selected status. * **Configuration**: show only agents assigned a specific configuration. * **Reporting rule**: show only agents assigned a specific reporting rule. * **Advisory exposure**: show only agents that are **Affected**,**Unknown**, or **Not affected** by security advisories, or only agents whose highest matching severity is **Critical**, **High**, **Medium**, or**Low**. This filter and the **Advisories** column require a Telegraf Enterprise license. See [Find affected agents on the Agents page](/telegraf/controller/security-advisories/view/#find-affected-agents-on-the-agents-page). Active filters appear as chips above the list, for example,**Status: Not reporting** or **Config: web-servers**. Click the icon on a chip to remove that filter. ## Search the agent list Type in the search box above the agent list to find agents. The search matches the agent’s ID, hostname, IP address, or Telegraf version. By default, the search finds the text anywhere in those fields and ignores case. For example, `prod` matches the hostnames `prod-web-01` and `PROD-DB-02`. Two toggles inside the search box change how the search matches: * **Use regular expression** (): treat the search text as a regular expression instead of plain text. For example, `^web-0[1-3]$` matches the hostnames `web-01`, `web-02`, and`web-03`, but not `web-04` or `prod-web-01`. A pattern can be up to 512 characters long. If the pattern is invalid, Telegraf Controller shows the error below the search box. * **Match case** (): match uppercase and lowercase letters exactly as typed. For example, `Web` matches `Web-01` but not `web-01`. A toggle is highlighted while it’s on. Turn both toggles off to return to the default plain-text search that ignores case. > [!Note] > #### Regular expression syntax depends on the database > > Telegraf Controller evaluates the pattern in its database, so the supported > syntax depends on which database your instance uses: > > * **PostgreSQL**: [POSIX regular expressions](https://www.postgresql.org/docs/current/functions-matching.html#FUNCTIONS-POSIX-REGEXP) > * **SQLite**: [Rust regular expression syntax](https://docs.rs/regex/latest/regex/#syntax) > > Common constructs such as anchors, character classes, alternation, and > quantifiers behave the same in both. The search text and both toggles are part of the page URL, so you can bookmark or share a filtered view of the agent list. The same search is available on the **Agents** tab of a configuration or a[configuration group](/telegraf/controller/config-groups/use/#view-agents-using-a-group). ## Refresh the list Click **Refresh** to reload the list and summary on demand, or open the attached menu to select an auto-refresh interval. ## Query the fleet summary API The `GET /api/agents/summary` endpoint returns the data behind the summary visualizations. It requires an API token with **read** permission on the**Agents** API. All query parameters are optional: | Parameter | Description | |---------------|-----------------------------------------------------------------------------| | `status` | Agent status code to filter by | | `search` |Text to match against the agent ID, hostname, IP address, or Telegraf version| | `regex` | `true` to treat `search` as a regular expression | |`caseSensitive`| `true` to match `search` case-sensitively | | `config` | Configuration ID or [alias](/telegraf/controller/configs/aliases/) | | `group` | Configuration group ID or alias | |`reportingRule`| Reporting rule ID | The `GET /api/agents` endpoint that lists agents accepts the same `search`,`regex`, and `caseSensitive` parameters. ```bash curl "https://telegraf-controller.example.com/api/agents/summary?status=1" \ -H "Authorization: Bearer API_TOKEN" ``` Replace `API_TOKEN`with an API token that has read permission on the Agents API. The response contains the total count, per-status counts, version distribution, and last-reported bands: ```json { "total": 42, "status": { "0": 35, "1": 4, "2": 3 }, "telegrafVersion": [ { "version": "1.39.0", "count": 30 }, { "version": null, "count": 12 } ], "lastReported": { "lt5m": 30, "lt30m": 5, "lt1h": 2, "lt12h": 2, "lt24h": 1, "older": 2 } } ``` A `version` of `null` means the agent has not reported a Telegraf version. The `older` band includes agents that have never reported. #### Related * [View agent heartbeat data](/telegraf/controller/agents/heartbeat-data/) * [Set agent statuses](/telegraf/controller/agents/status/) * [Define agent reporting rules](/telegraf/controller/agents/reporting-rules/) * [Security advisories](/telegraf/controller/security-advisories/) | Parameter | Description | | --- | --- | | Parameter | Description | | status | Agent status code to filter by | | search | Text to match against the agent ID, hostname, IP address, or Telegraf version | | regex | true to treat search as a regular expression | | caseSensitive | true to match search case-sensitively | | config | Configuration ID or alias | | group | Configuration group ID or alias | | reportingRule | Reporting rule ID |
