Use Grafana to query and visualize data
Use Grafana or Grafana Cloud to query and visualize data from InfluxDB Cloud Serverless.
Identify your InfluxDB version
If you are unsure which InfluxDB product you are using, use our interactive version detector to help identify it:
[Grafana] enables you to query, visualize, alert on, and explore your metrics, logs, and traces wherever they are stored. [Grafana] provides you with tools to turn your time-series database (TSDB) data into insightful graphs and visualizations.
- Install Grafana or log in to Grafana Cloud
- InfluxDB data source
- Before you begin
- Create an InfluxDB data source
- Query and visualize data
Install Grafana or log in to Grafana Cloud
Sign up for Grafana Cloud or follow the Grafana installation instructions to install Grafana for your operating system.
If running Grafana locally, enable the
newInfluxDSConfigPageDesignfeature flag to use the latest InfluxDB data source plugin.For more information, see Configure feature toggles in the Grafana documentation.
Visit your Grafana Cloud user interface (UI) or, if running Grafana locally, start Grafana and visit http://localhost:3000 in your browser.
InfluxDB data source
The InfluxDB data source plugin is included in the Grafana core distribution. Use the plugin to query and visualize data from InfluxDB Cloud Serverless with both SQL and InfluxQL.
Grafana 12.2+
The instructions below are for Grafana 12.2+ with the newInfluxDSConfigPageDesign
feature flag enabled. This introduces the newest version of the InfluxDB core plugin.
The updated plugin includes SQL support for InfluxDB 3-based products such
as InfluxDB Cloud Serverless, and the interface dynamically adapts based on your
product and query language selection in URL and authentication.
Before you begin
Prerequisites:
- Grafana 12.2 or later
- Administrator role in Grafana
- An API token with read access to the bucket
Quick reference: InfluxDB Cloud Serverless configuration
| Configuration | Value |
|---|---|
| Product selection | InfluxDB Cloud Serverless |
| URL | Region URL–for example, https://us-west-2-1.aws.cloud2.influxdata.com |
| Query languages | SQL (requires HTTP/2), InfluxQL |
| Authentication | Required (API token) |
| Database/Bucket | Bucket name |
Create an InfluxDB data source
- In your Grafana interface, click Connections in the left sidebar.
- Click Data sources.
- Click Add new data source.
- Search for and select InfluxDB. The InfluxDB data source configuration page displays.
- In the Settings tab, enter a Name for your data source.
Configure URL and authentication
In the URL and authentication section, configure the following:
- URL: Your InfluxDB Cloud Serverless region URL–for example,
https://us-west-2-1.aws.cloud2.influxdata.com - Product: From the dropdown, select InfluxDB Cloud Serverless
- Query Language: Select SQL or InfluxQL
- (Optional) Advanced HTTP Settings, Auth, and TLS/SSL Settings as needed for your environment
Configure database settings
The fields in this section change based on your query language selection in URL and authentication.

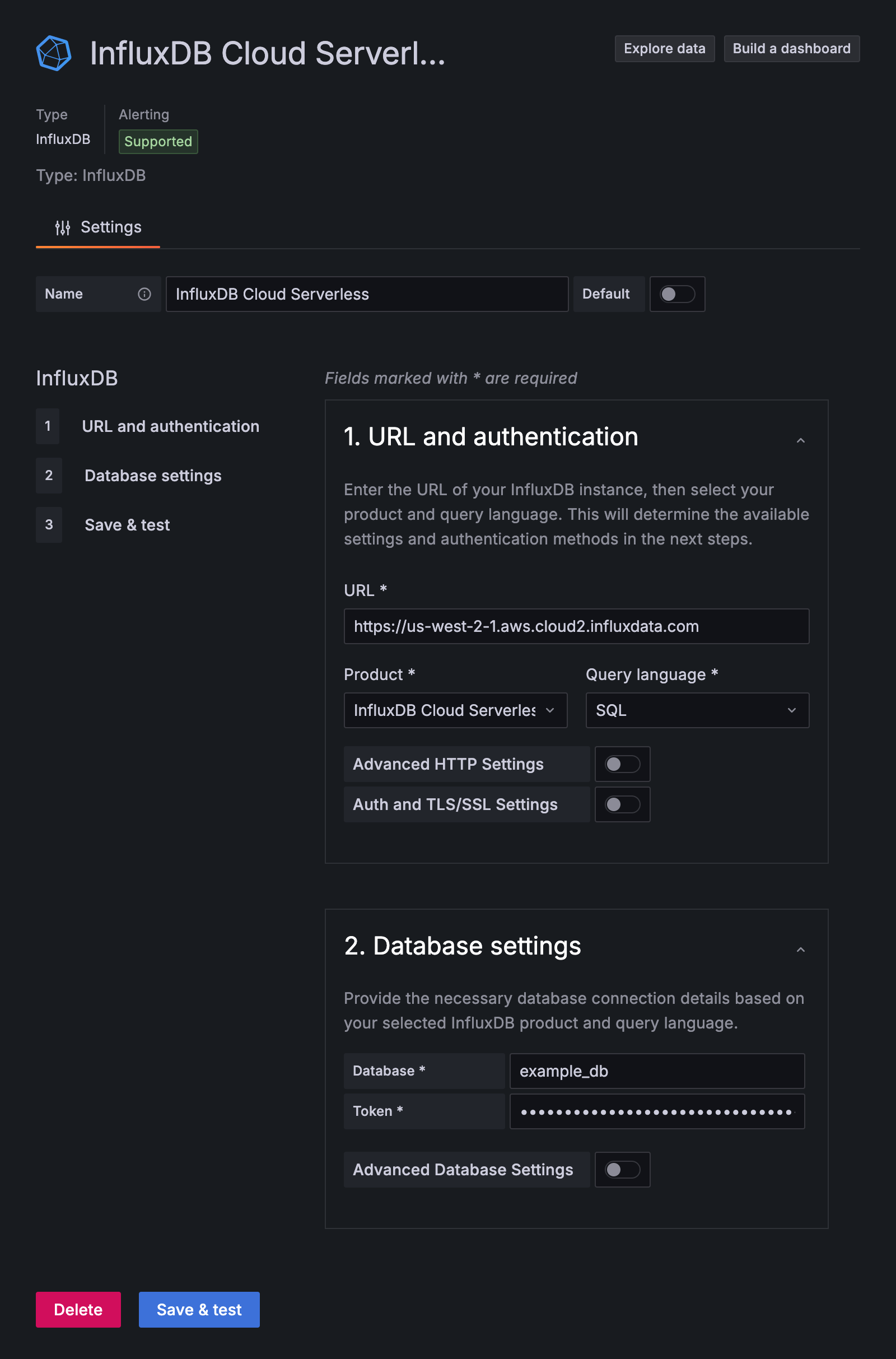

SQL configuration
When you select SQL as the query language, configure the following fields:
Database: Your bucket name. In InfluxDB Cloud Serverless, buckets function as databases.
Token: An API token with read access to the bucket
Grafana queries through a proxy require HTTP/2
For SQL queries, Grafana uses the Flight SQL protocol (gRPC) to query InfluxDB Cloud Serverless, which requires HTTP/2. If you query InfluxDB Cloud Serverless through a proxy (such as HAProxy, nginx, or a load balancer), verify that your proxy is configured to support HTTP/2. Without HTTP/2 support, SQL queries through Grafana will fail to connect.
InfluxQL queries use HTTP/1.1 and are not affected by this requirement.
Click Save & test. Grafana attempts to connect to InfluxDB Cloud Serverless and returns the result of the test.

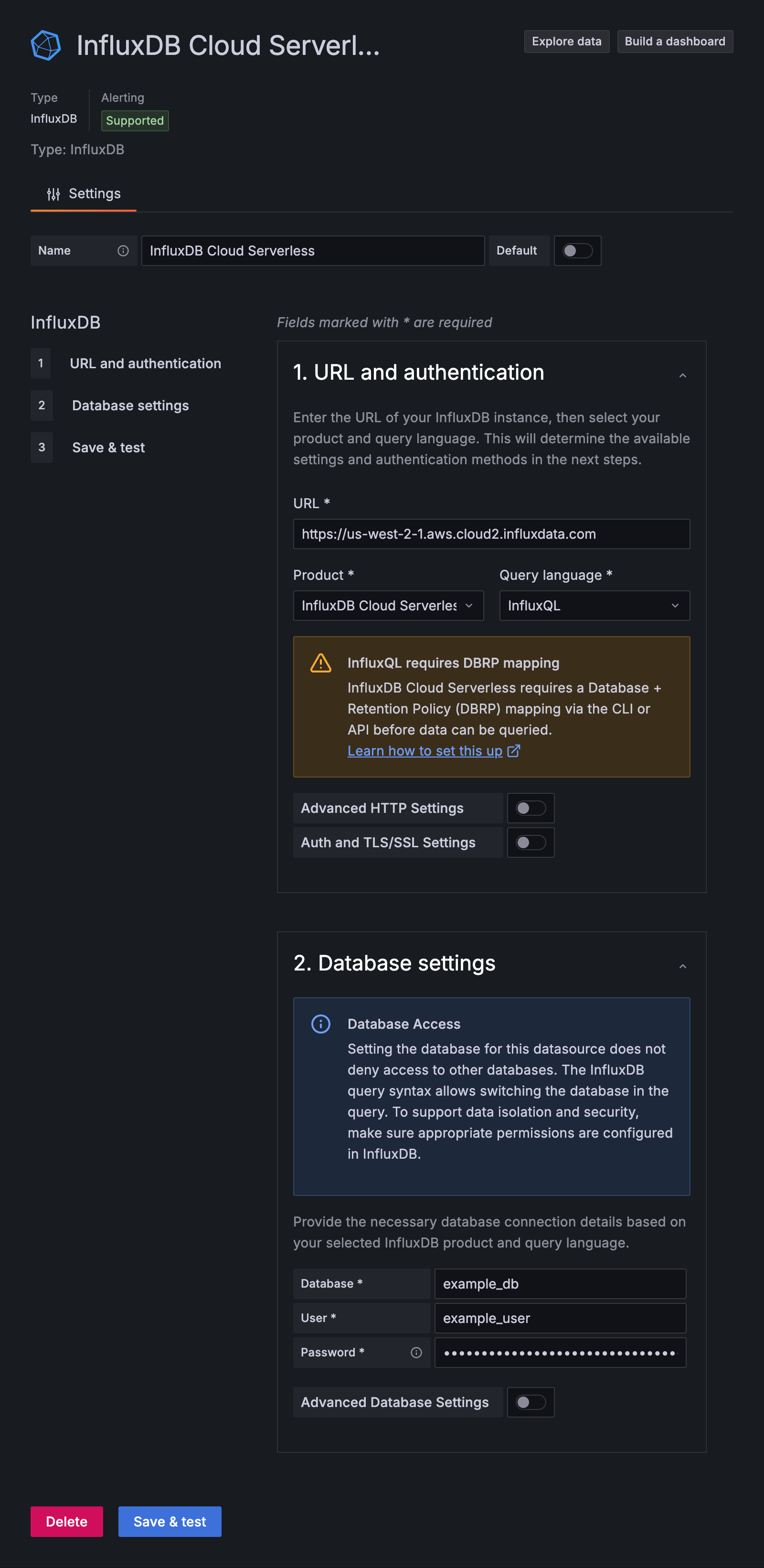

InfluxQL configuration
DBRP mapping required
To query InfluxDB Cloud Serverless with InfluxQL, you must first map database and retention policy (DBRP) combinations to your InfluxDB Cloud buckets. The configuration form displays a warning if DBRP mapping is not configured.
For more information, see Map databases and retention policies to buckets.
When you select InfluxQL as the query language, configure the following fields:
Database: The database name mapped to your InfluxDB bucket.
User: A username (can be any non-empty value).
Password: Your API token with read access to the bucket.
HTTP Method: Select POST (recommended) or GET
Click Save & test. Grafana attempts to connect to InfluxDB Cloud Serverless and returns the result of the test.
Query and visualize data
With your InfluxDB connection configured, use Grafana to query and visualize time series data.
Query InfluxDB with Grafana
After you configure and save an InfluxDB datasource, use Grafana to build, run, and inspect queries against your InfluxDB bucket.
When working with the InfluxDB Cloud Serverless SQL implementation a bucket is equivalent to a database, a measurement is equivalent to a table, and time, fields, and tags are structured as columns. To learn more, see Query Data.
Click Explore.
In the dropdown, select the saved InfluxDB data source to query.
Use the SQL query form to build your query:
Table: Select the table (measurement) to query.
Column: Select one or more fields and tags to return as columns in query results.
With SQL, select the
timecolumn to include timestamps with the data. Grafana relies on thetimecolumn to correctly graph time series data.Optional: Toggle filter to generate WHERE clause statements.
- WHERE: Configure condition expressions to include in the
WHEREclause.
- WHERE: Configure condition expressions to include in the
Optional: Toggle group to generate GROUP BY clause statements.
- GROUP BY: Select columns to group by. If you include an aggregation function in the SELECT list, you must group by one or more of the queried columns. SQL returns the aggregation for each group.
Recommended: Toggle order to generate ORDER BY clause statements.
- ORDER BY: Select columns to sort by. You can sort by time and multiple fields or tags. To sort in descending order, select DESC.
Recommended: Change format to Time series.
- Use the Format dropdown to change the format of the query results. For example, to visualize the query results as a time series, select Time series.
Click Run query to execute the query.
- Click Explore.
- In the dropdown, select the InfluxDB data source that you want to query.
- Use the InfluxQL query form to build your query:
- FROM: Select the measurement that you want to query.
- WHERE: To filter the query results, enter a conditional expression.
- SELECT: Select fields to query and an aggregate function to apply to each.
The aggregate function is applied to each time interval defined in the
GROUP BYclause. - GROUP BY: By default, Grafana groups data by time to downsample results and improve query performance. You can also add other tags to group by.
- Click Run query to execute the query.
With your InfluxDB connection configured, use Grafana to query and visualize time series data.
Build visualizations with Grafana
For a comprehensive walk-through of creating visualizations with Grafana, see the Grafana documentation.
Query inspection in Grafana
To learn more about query management and inspection in Grafana, see the Grafana Explore documentation.
